New
Equipment
Can-Am
is the exclusive distributor of NEW
Kohmann
Window Machines
Omega
ALLPRO
Folder Gluers
and
ESATEC
Pick & Place Machines
Corrugated Joiner
and Custom Machinery
in
North & South
America
|
 |

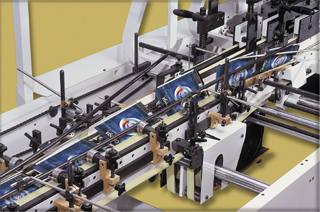

Final
Fold
|
|
|
- Left, right carriers with
removable center carrier
- Digital indicators on carriers
- Upper center carrier positioning
scale
- Flexible, easily positionable
folding rails for high-speed folding

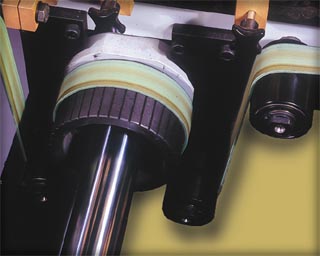

- Spring loaded folder rolls
with brass supports are easily repositioned along a horizontal
slide
- Vertical folder belt guides
and folder belt rolls assure precise folder belt control
- Spring loaded squeeze rolls
- Independently adjustable speed
on folder belts assure precise, square folds of high ratio
cartons
- Squaring device for high ratio
corrugated cartons
|
|
|
- The final fold end roll can
be repositioned to allow folding of four corner trays with
lids
|
|
|
- Conical pulleys allow the
folder belts to be run faster or slower in relation to the
lower carrier belts to help squaring of high ratio cartons
|
| |
|
Omega
| feed
| back fold
| pre-fold
| final fold
| glue system
|
| stacker
| trombone
| controls | specifications
| |
|
